CCMS Highbay Solutions

Motion Sensor Highbay Solutions featuring smart connectivity, where each Highbay Light is linked to an app via SIM or Wi-Fi for seamless monitoring and control

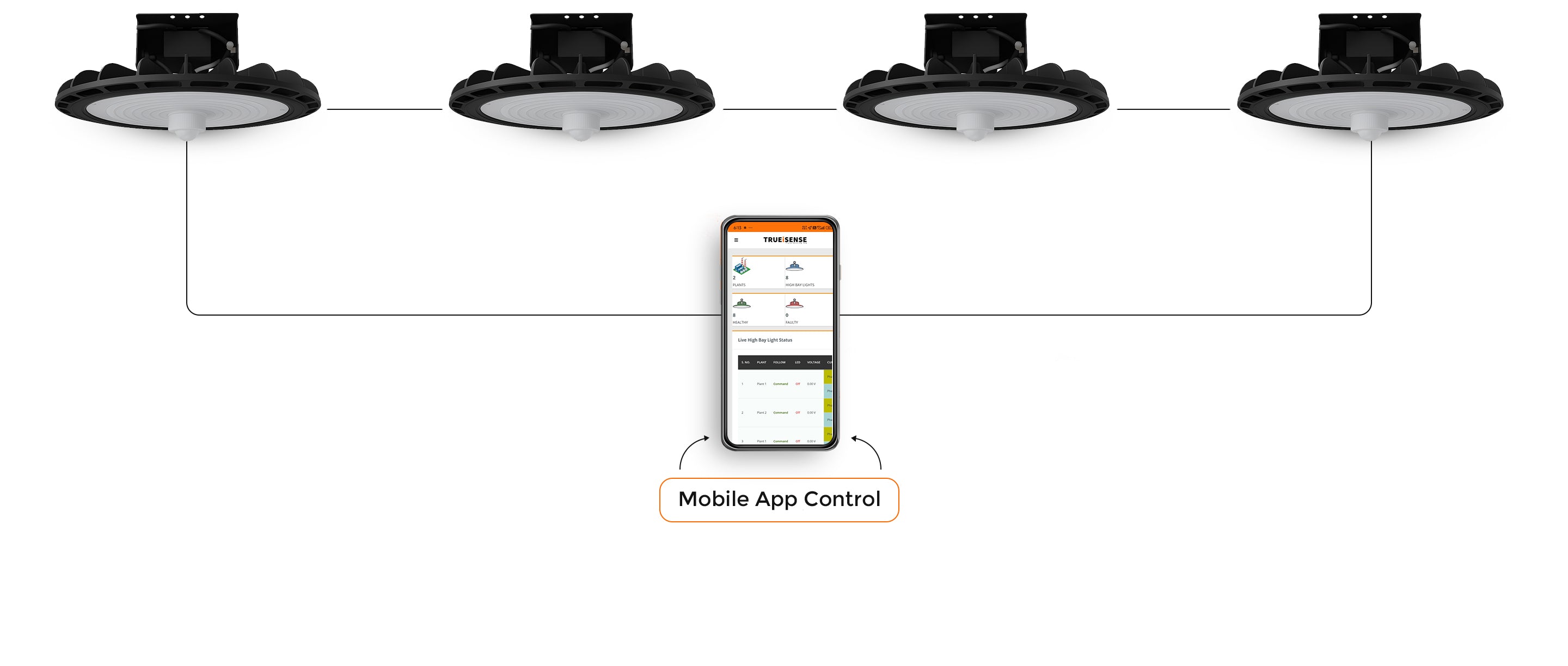

  • App-Based Smart Control

    Easily manage and customize your highbay lights from a dedicated mobile app, enabling users to remotely switch on and off, fine-tune brightness, and select operation modes, ensuring seamless, accessible control from any location or device

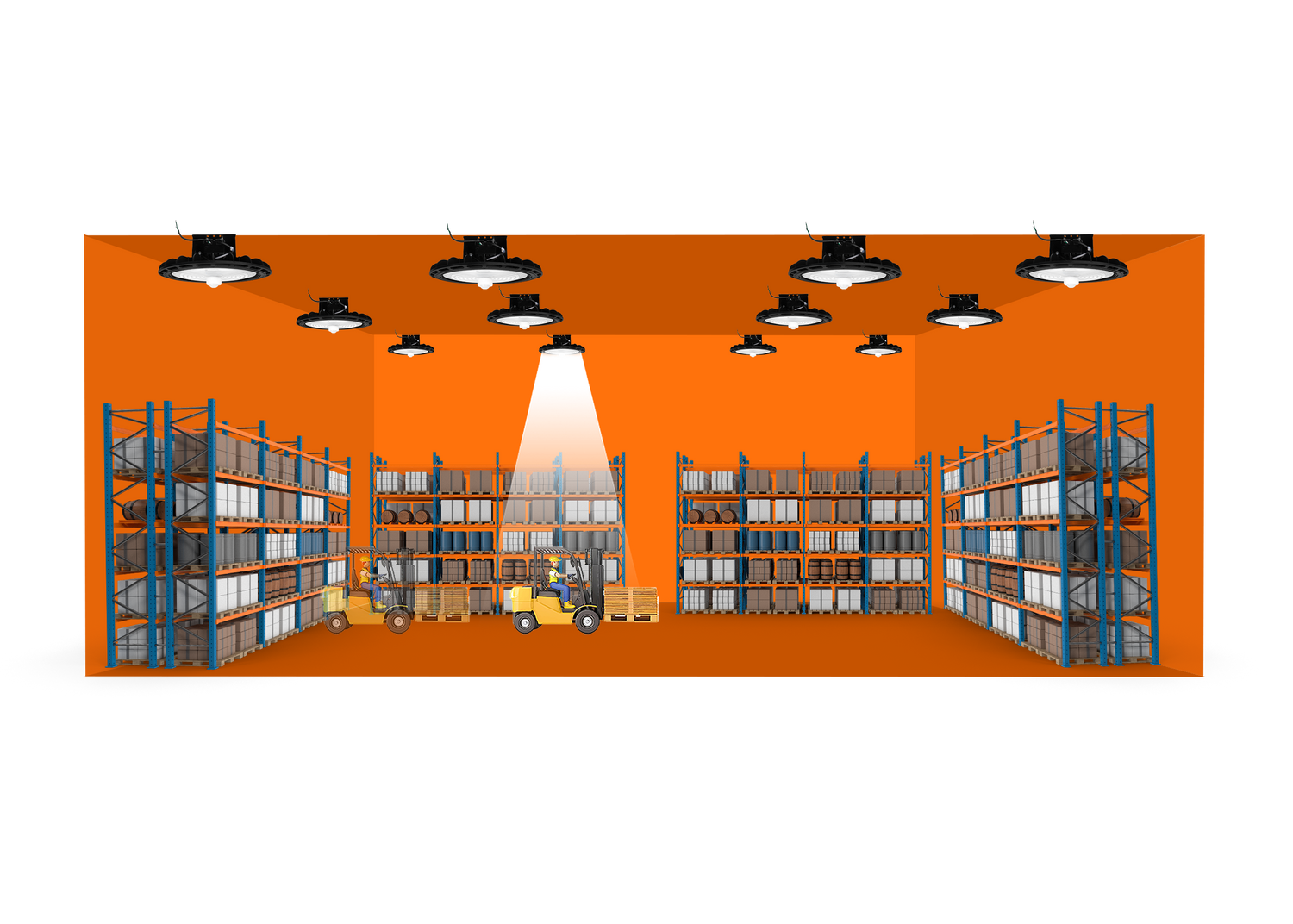

  • Flexible Operating Modes

    Switch between intelligent, hands-free motion sensor activation or traditional manual override as needed. This flexibility allows for fully adaptive lighting control, catering to preference and usage scenarios in warehouses, factories, or commercial environments.

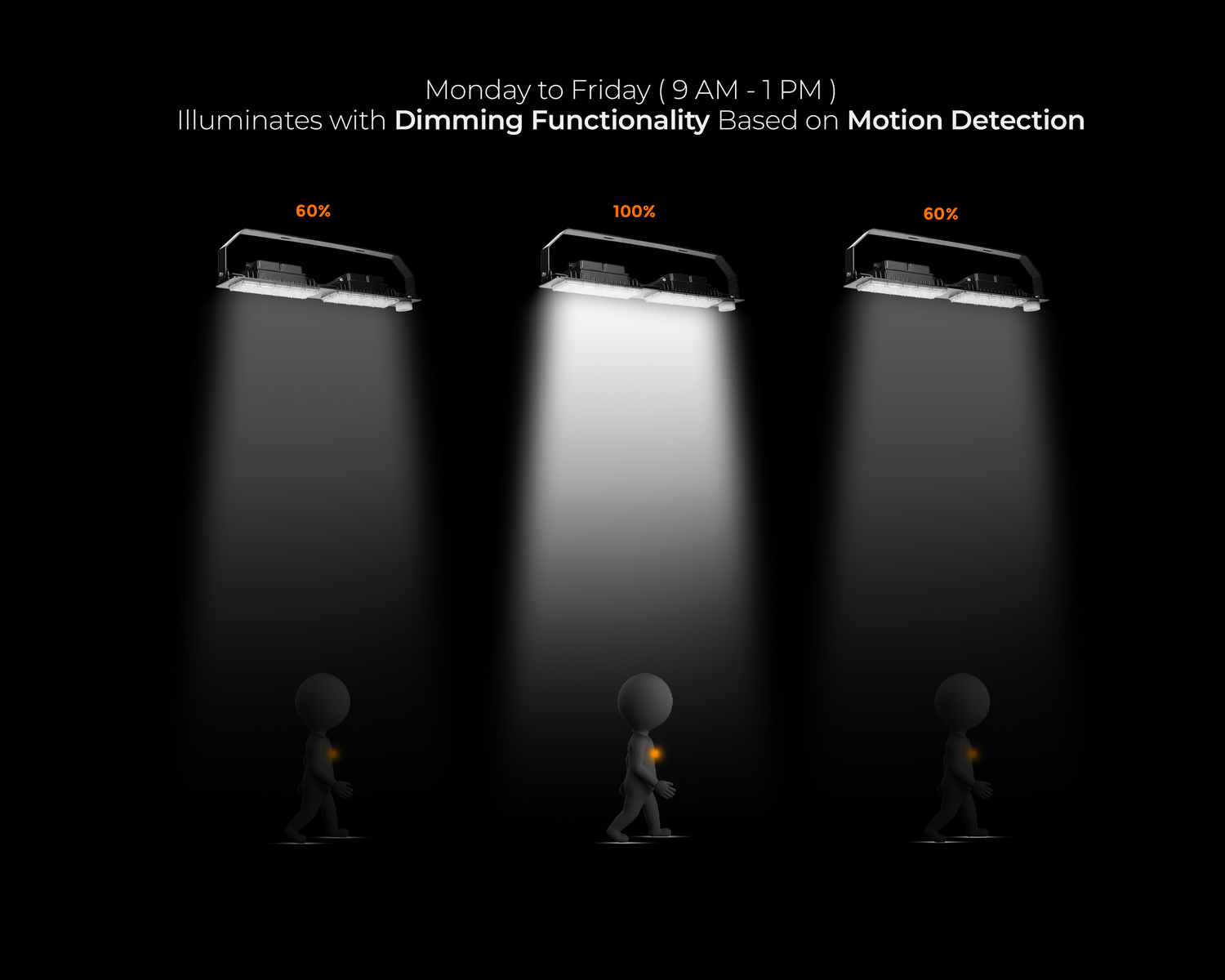

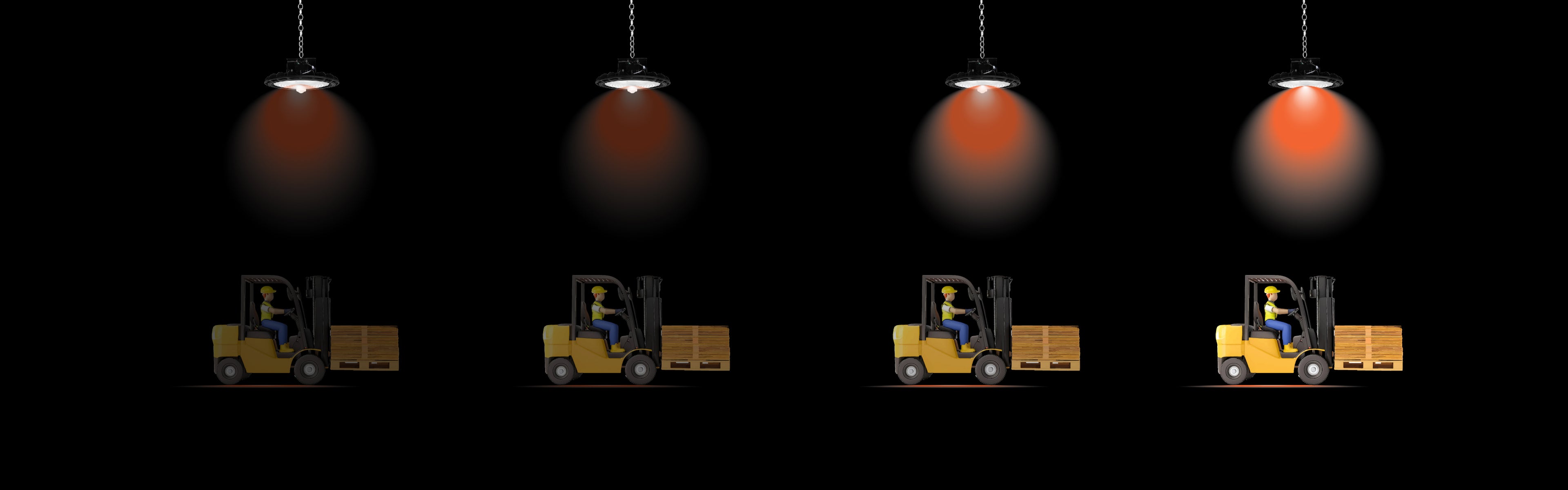

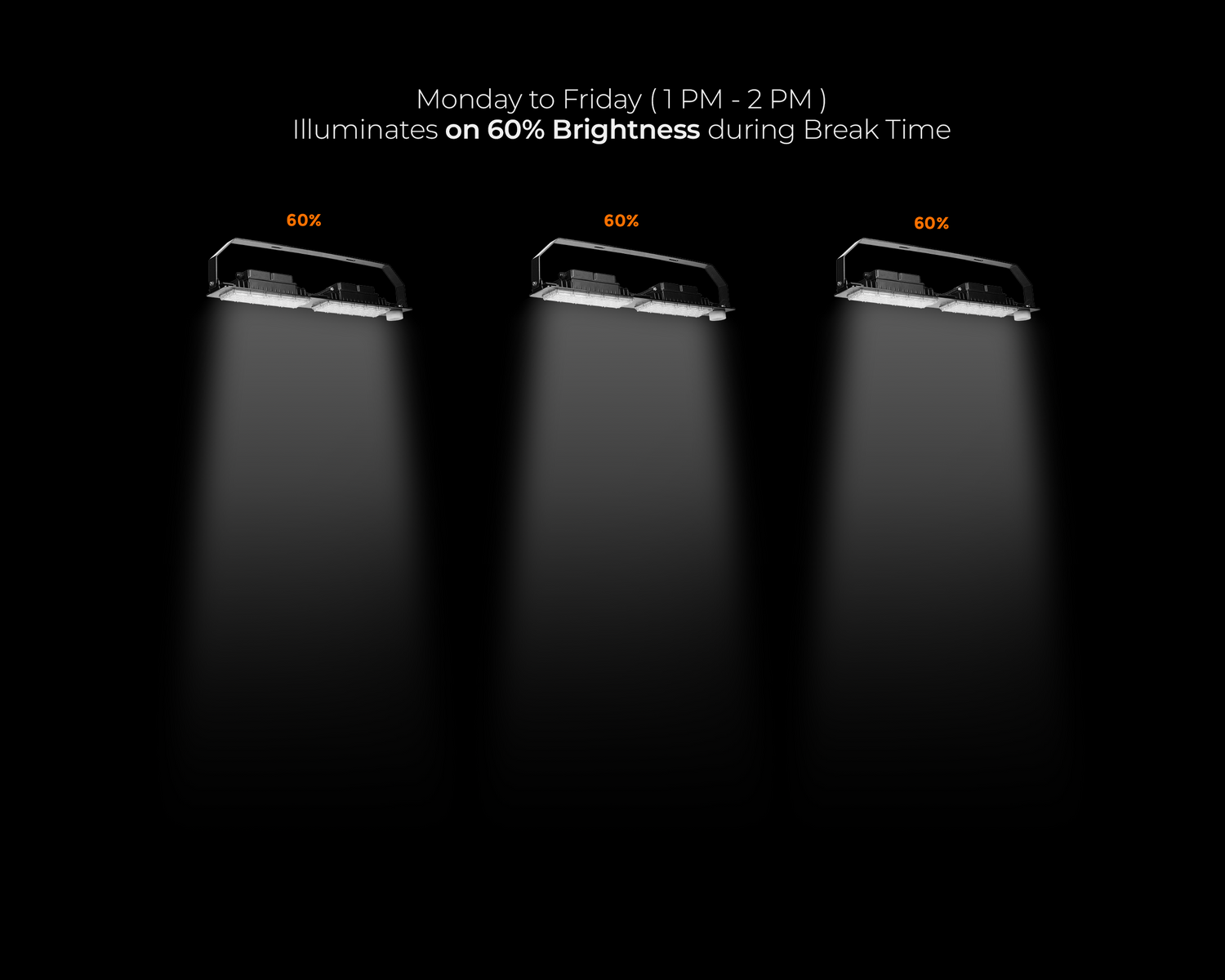

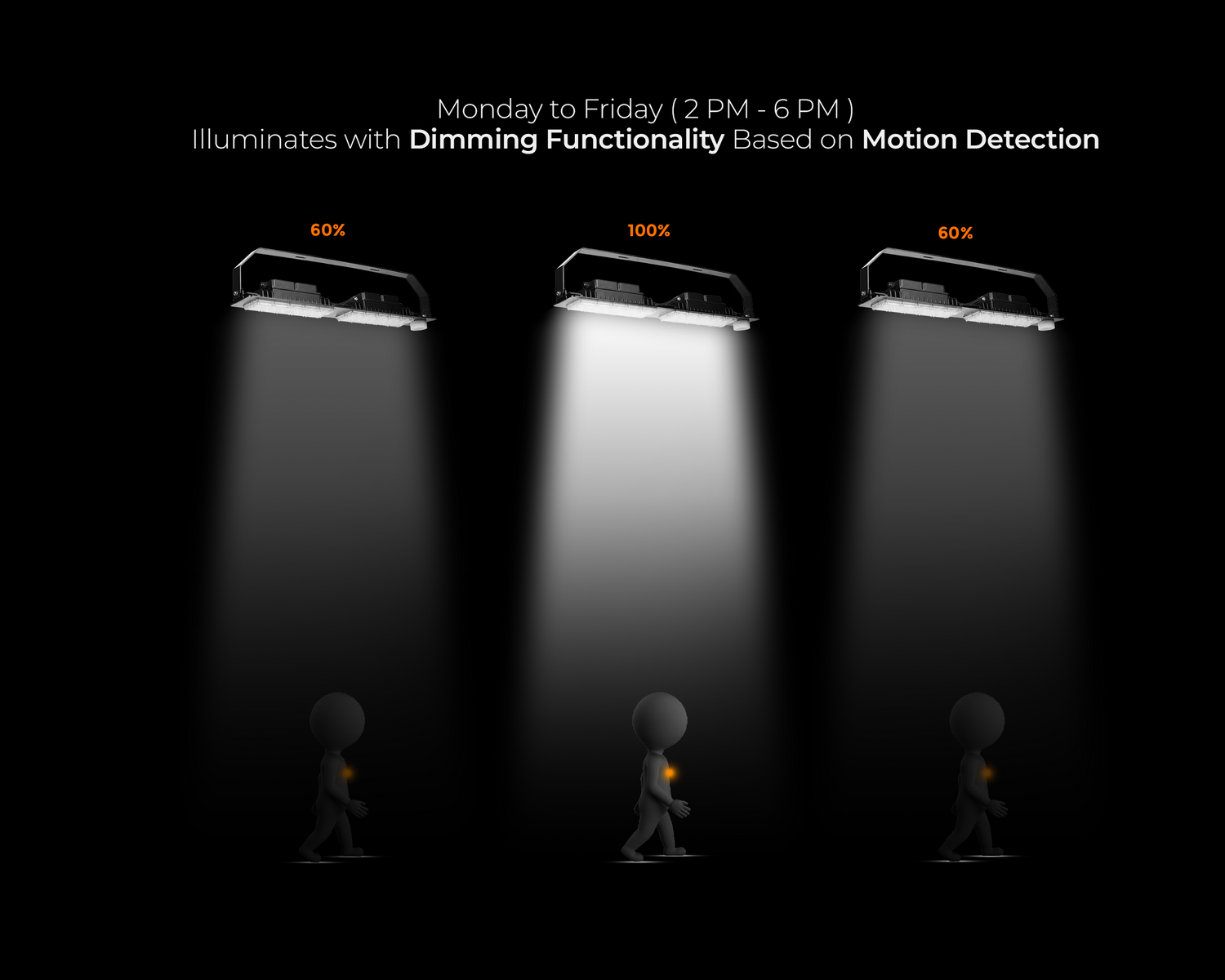

  • Scheduling and Custom Dimming

    Set automated brightness schedules to match daily routines: schedule specific dimming levels by time—for example, 30% at 10am, 50% at noon, and full brightness at night—so lighting matches activity with maximum efficiency

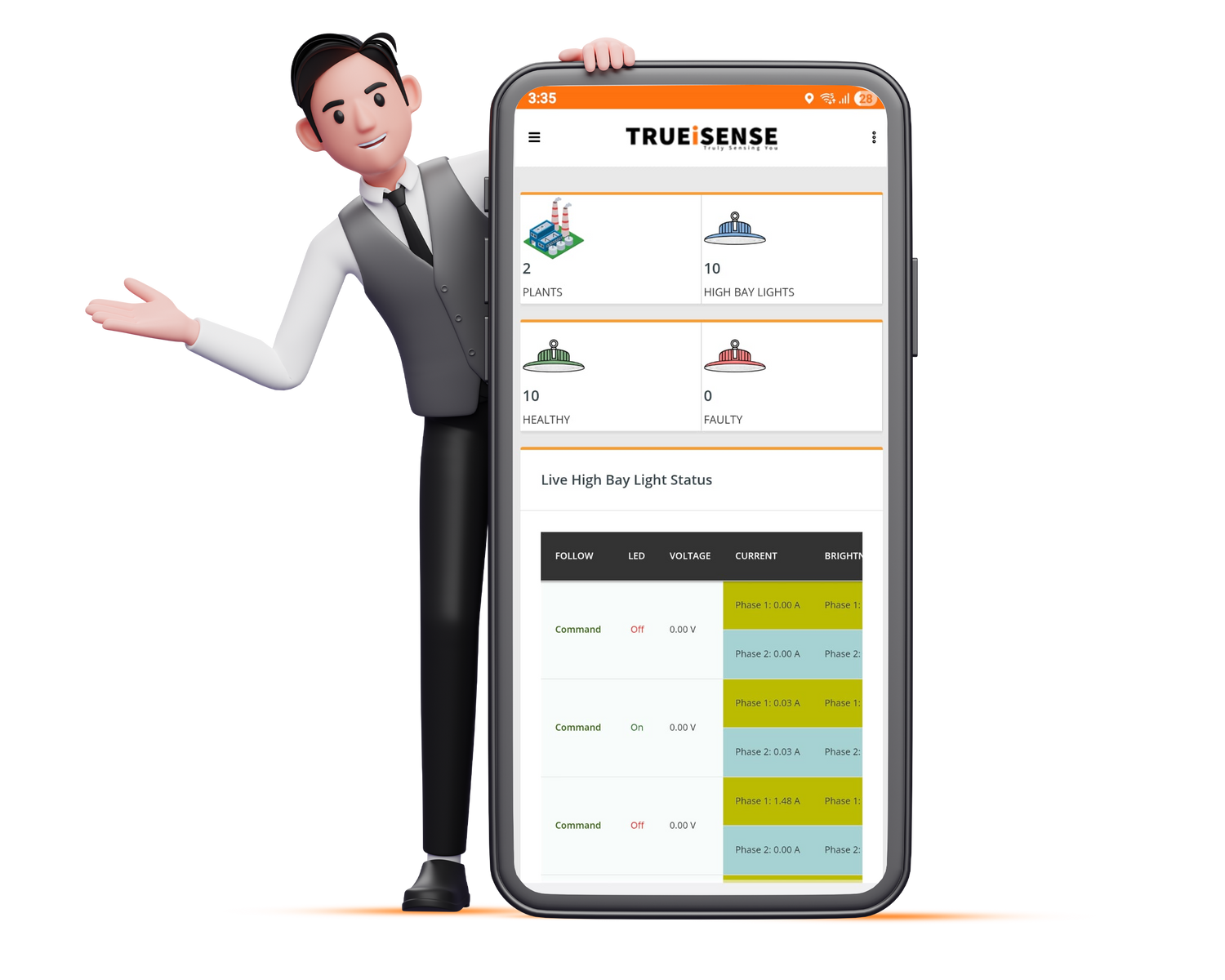

  • Real-Time Monitoring & Control

    Track and control the status of every light in real time directly from the app. Instantly make changes, receive alerts, and adjust settings, ensuring every fixture operates as desired for safety and productivity.

  • Energy Efficiency & Cost Savings

    Advanced sensors and customizable dimming drastically reduce unnecessary energy use, activating lights only when needed and at the right intensity, resulting in significant power bill savings and environmentally responsible operation in large spaces.

  • Easy Installation & Versatility

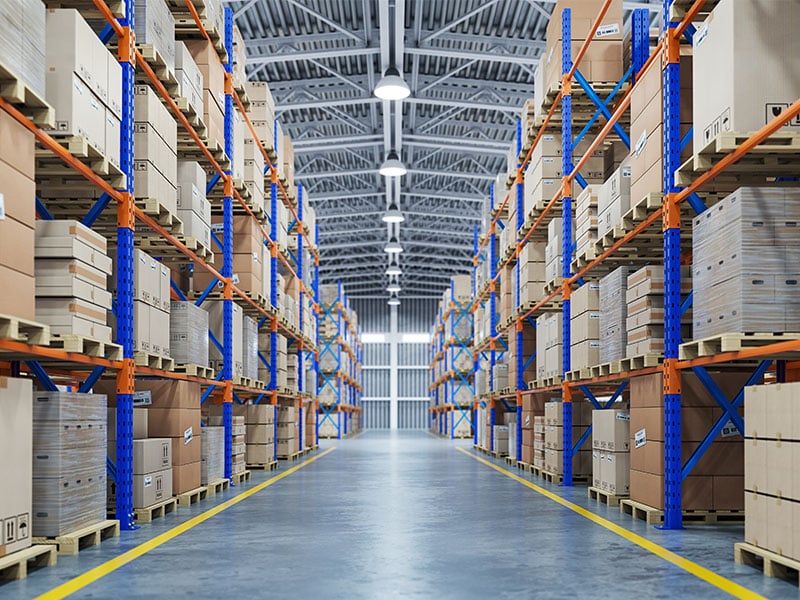

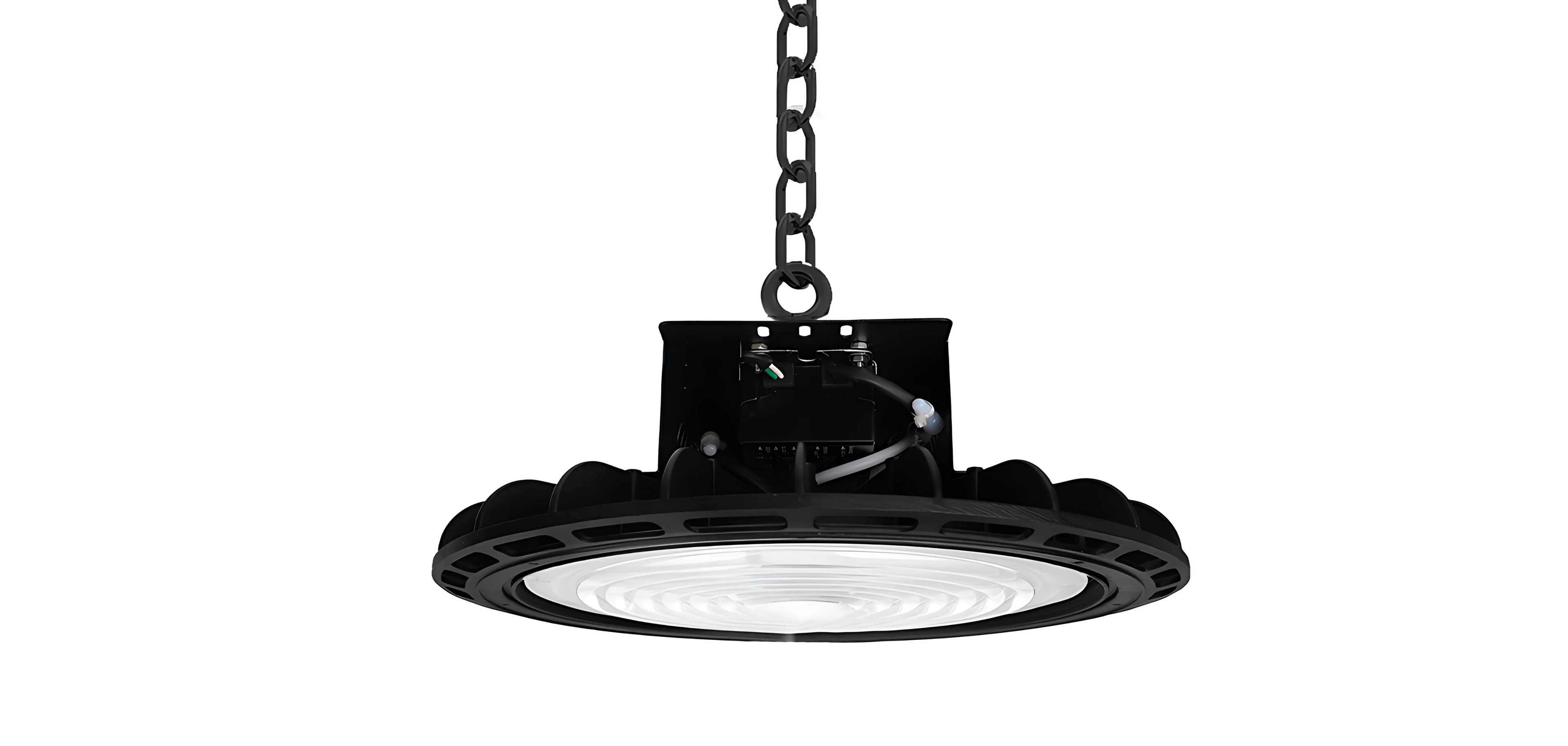

    Rugged and efficient highbay fixtures are designed for quick installation in high-ceiling environments. Universal mounting options and robust construction guarantee reliable, long-lasting performance, whether in warehouses, gyms, workshops, or commercial premises.

  • Flexible Daylight Harvesting

    Empower users with flexible control: set lux levels manually, let the system automatically adjust lighting based on ambient daylight, or enable simple motion-triggered on/off—all modes accessible for personalized energy savings and comfort.

  • GSM & WiFi Protocol Control

    The entire highbay lighting system can be remotely commanded via GSM or WiFi protocols, ensuring users manage schedules, brightness, and modes effortlessly from anywhere, with strong connectivity, reliability, and secure app-based controls.

Industrial-grade intelligence. Precision-built efficiency.

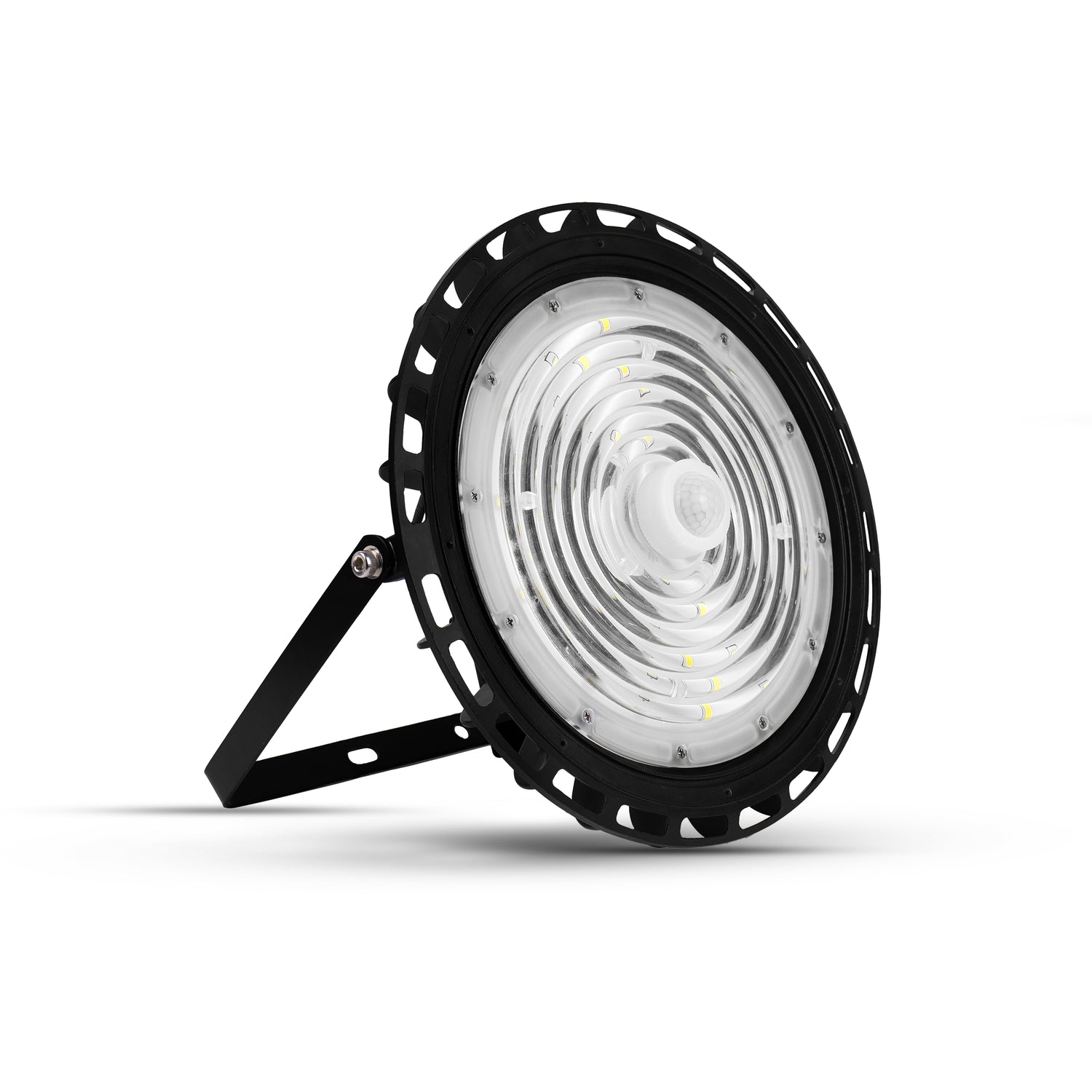

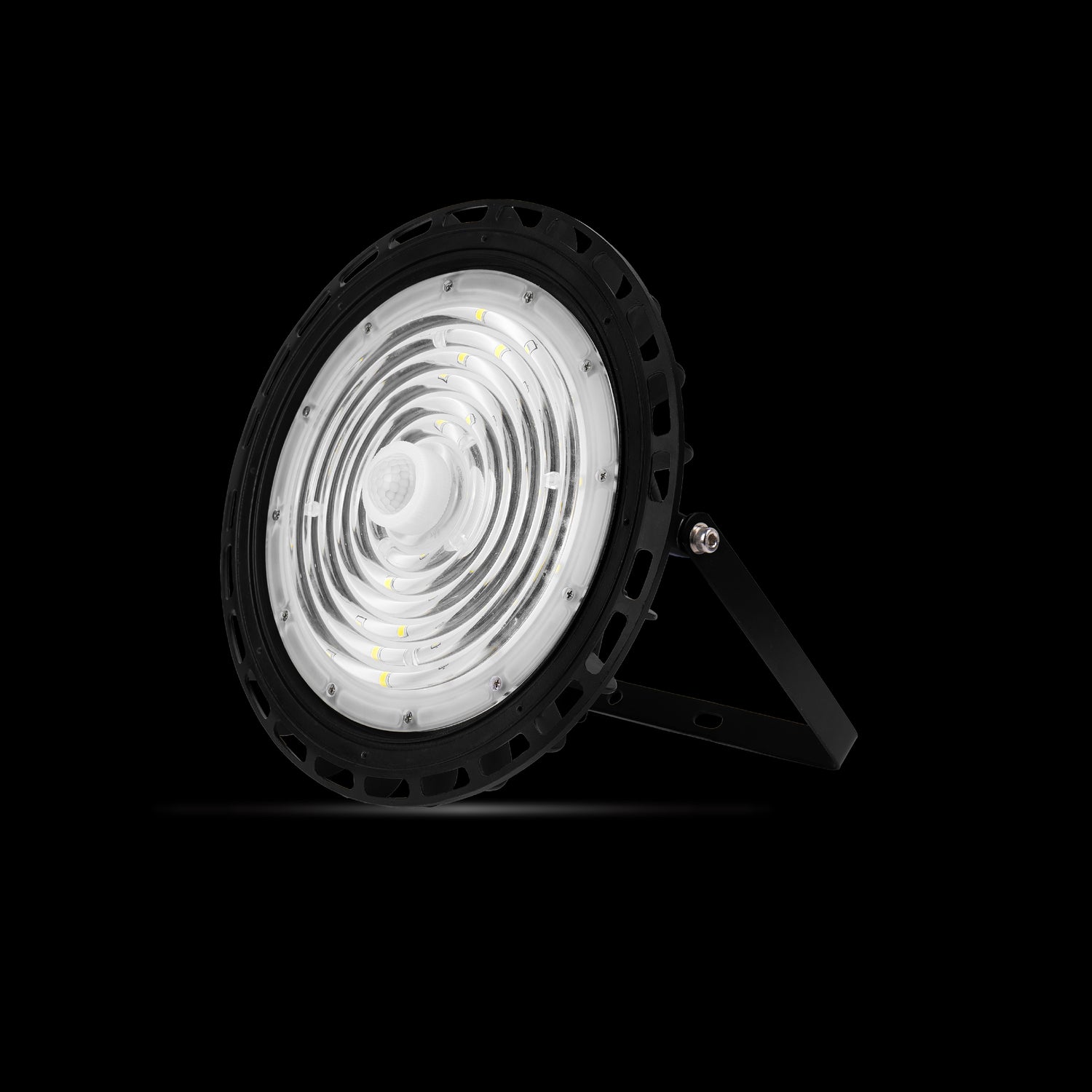

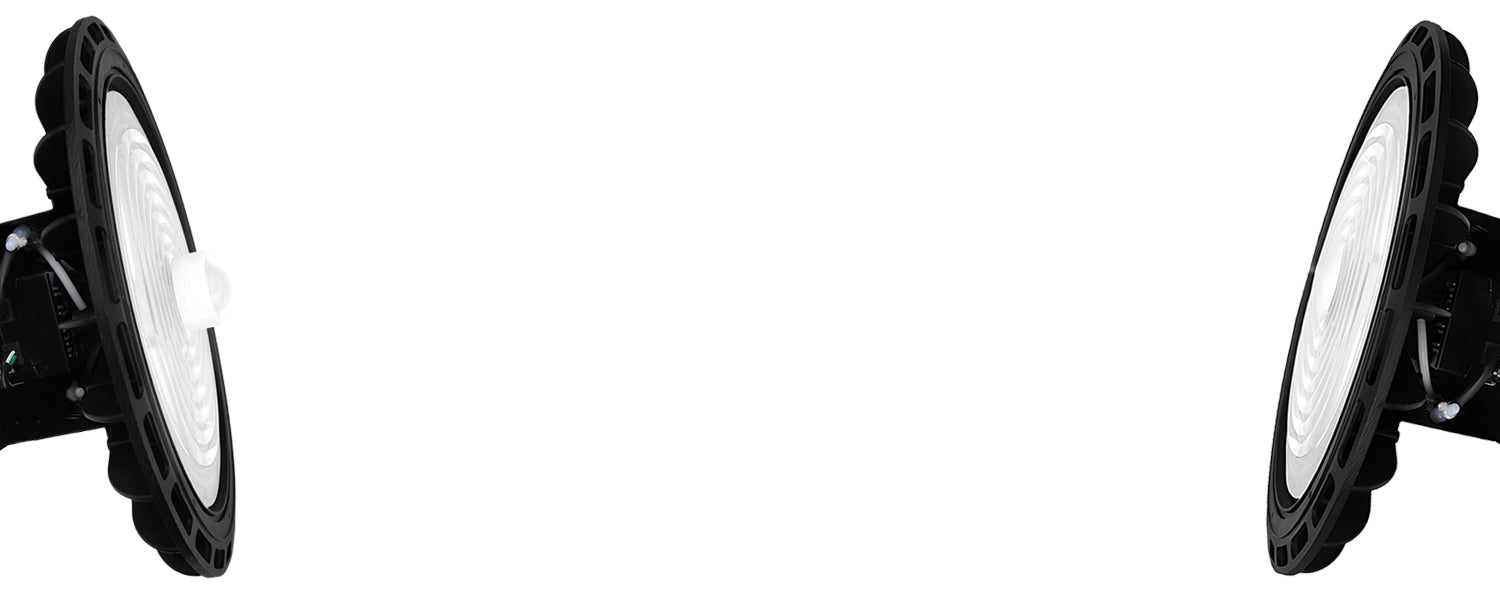

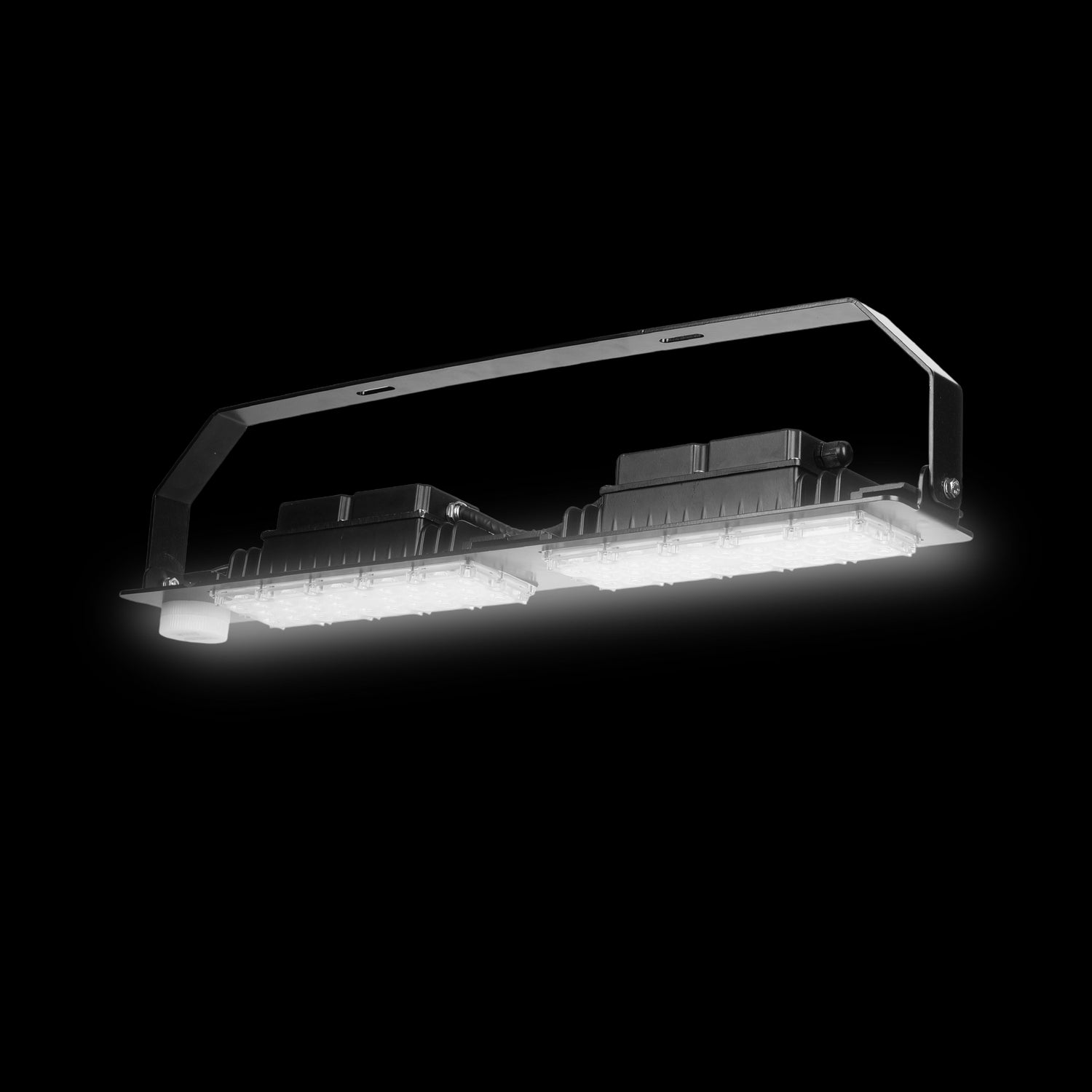

Designed for demanding vertical spaces, the TRUEiSENSE Motion Sensor High Bay Light combines robust hardware with advanced sensing logic to deliver adaptive illumination up to 18 meters high.
Powered by a high-efficiency driver (92%) with THD <10%, PF 0.99, and dimming via 0-10V/PWM, it supports smooth daylight harvesting and motion-based control. Integrated microwave/PIR sensor (5.8 GHz Doppler) ensures real-time presence detection with adjustable sensitivity, hold time, lux threshold, and standby dimming—fully tunable via remote.



Control your light, Control your costs. Go smarter, go sustainable

Experience next-gen industrial lighting with our sensor-integrated Highbay lights – built for performance, efficiency, and control. With up to 92% efficiency, intelligent dimming (10–100%), and advanced motion detection up to 18m, this smart solution saves power, cuts costs, and extends operational life to 50,000+ hours.

Switch Now!

Smart. Adaptive. Efficient.

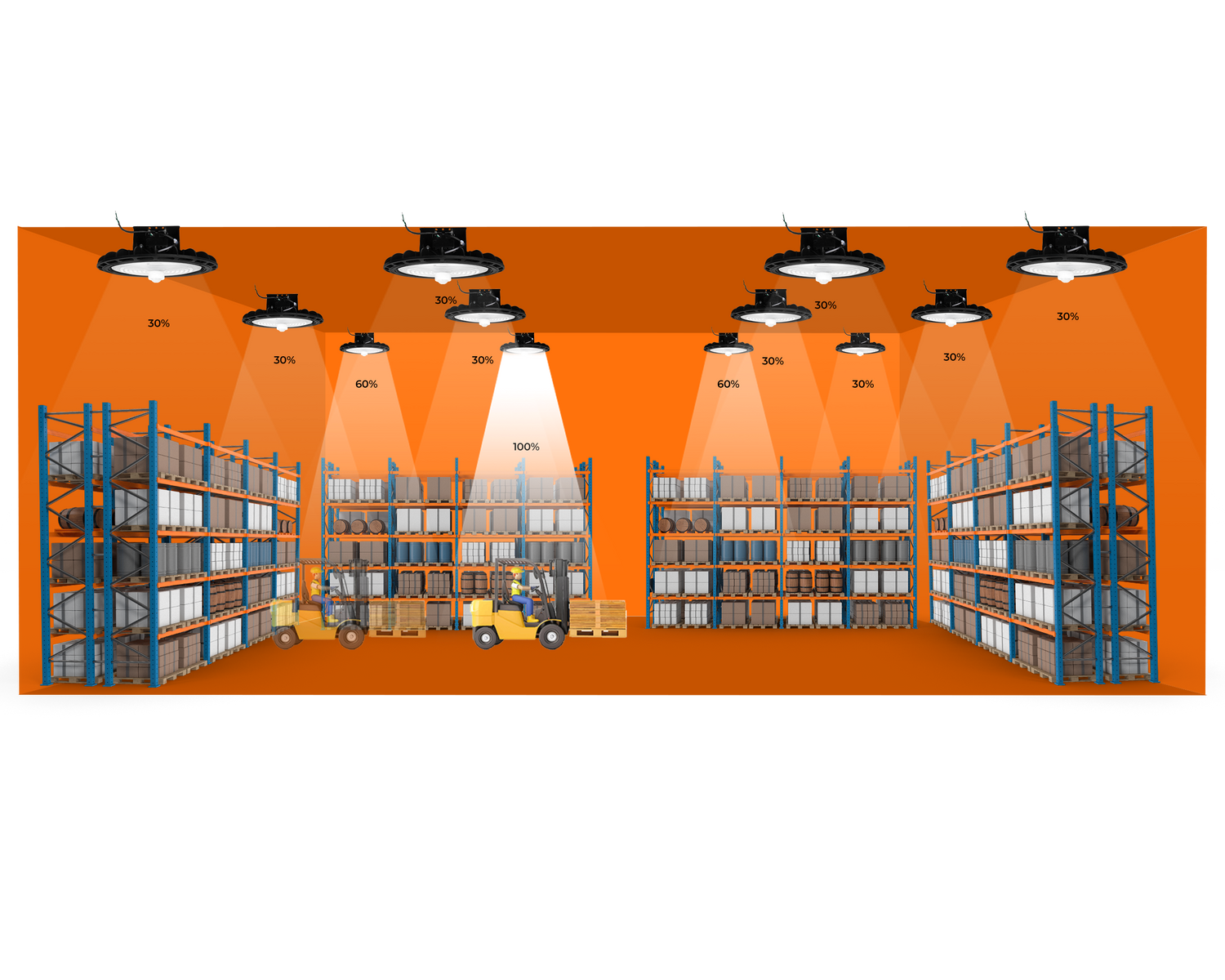

With a detection range of up to 18 meters, customizable sensitivity settings, and stand-by dimming options, it provides reliable illumination only when needed, ensuring operational efficiency. Built on the Doppler Effect principle, it enhances motion detection accuracy for Industries.

Technical Specifications

INPUT

Nominal Voltage : 240V/AC

Nominal Frequency : 50Hz

AC Voltage : 204-276 V/AC

Operational Voltage Range : 100-320 V/AC

Nominal Current : 600mA

Total Harmonic Distortion (THD) : <10%

Power factor : 0.99

Efficiency : 92%

No Load Power : <3 Watt

Power Loss : 9.2 Watt

Inrush Current : <32 A

Leakage Current : n/amA

OUTPUT

Nominal Voltage Range : 115 144V/DC

Maximum Voltage : 250V/DC

Nominal Current Range : 700mA

Current Accuracy : ±5%

Current Ripple : <5%

Nominal Power Range : 100 Watt

Galvanic Isolation : 3000V

AUX

Nominal Voltage range : 12V/DC

Maximum Voltage : 15V/DC

Nominal Current Range : 200mA

Current Accuracy : ±5%

Galvanic Isolation : 2500V

PROTECTION

Open Circut : Yes,Limitation of Output voltage <52v

Short Circut : Automatic Reversible

Phase to Phase : Withstand 440VAC for 48 hrs

Overload : Automatic reversible

Input Overvoltage : Automatic reversible

Input Undervoltage : Automatic reversible

DIMMING

Dimming Control : YES

Dimming Range : 10-100%

Dimming Technique : 0-10/PWM

Frequency : 200-1000Hz

Galvanic Isolation : 2500V

ENVIRONMENT

Ambient Temperature Range : (-20 to +70)°C

Maximum Case Temperture : 85°C

Relative Humidity : ±5 ... 90%

Surage Transient Protection : 6kV

IP Rating : 65

Expected Lifetime : 50,000hrs

SENSOR PARAMETERS

Sensor Type : Microwave / PIR

Sensor Principle : HF frequencey with Doppler Effect Principle

Frequency Microwave : 5.8 GHz

Sensor Power : <0.3mW

Sensitivity : 100%,75%,50%,25%
( Refer to Remote Control)

Hold Time : 3s/30s/90s/5min/15min/20min/30min/ (Refer to Remote Control) 5Lux/15Lux/50Lux/100Lux/300Lux/Disable (Refer to Remote Control)

Stand-by Period : 0s/5s/30s/3min/5min/15min/45min/+ ∞ % (Refer to Remote Control)

Stand-by Pimming Level : 10%/20%/30%/50% (% Refer to Remote Control)

Detection range : UP to 18 meter ⌀
