Smart Sensor Lighting and Controls by TRUEiSENSE revolutionize the way you experience lighting. Our advanced technology integrates intelligent sensors that adapt to your environment, optimizing energy efficiency and enhancing comfort. Whether it's motion detection, daylight harvesting, or personalized lighting settings, TRUEiSENSE ensures seamless control and unparalleled convenience. Illuminate your spaces smarter and greener with TRUEiSENSE.
Smarter Sensors. Smaller Footprints
The sensing era is quietly transformational. Every auto-off moment saves electricity. Every adaptive light cycle extends product life. And every reduction in overconsumption nudges us closer to a future where technology doesn’t just serve us—it serves the environment too.
Control your light, Control your costs.
With the TRUEiSENSE Smart Sensor Lighting & control solutions, a significant reduction in greenhouse gas emissions (CO2, etc.) during the use phase of our luminaires & sensing technology its achievable. By leveraging motion detection, brightness detection, and intelligent control systems, our State of the Art Sensors & luminaires ensure that light is only activated at the required illuminance and color, precisely where and when it is needed.
Smart. Adaptive. Efficient.

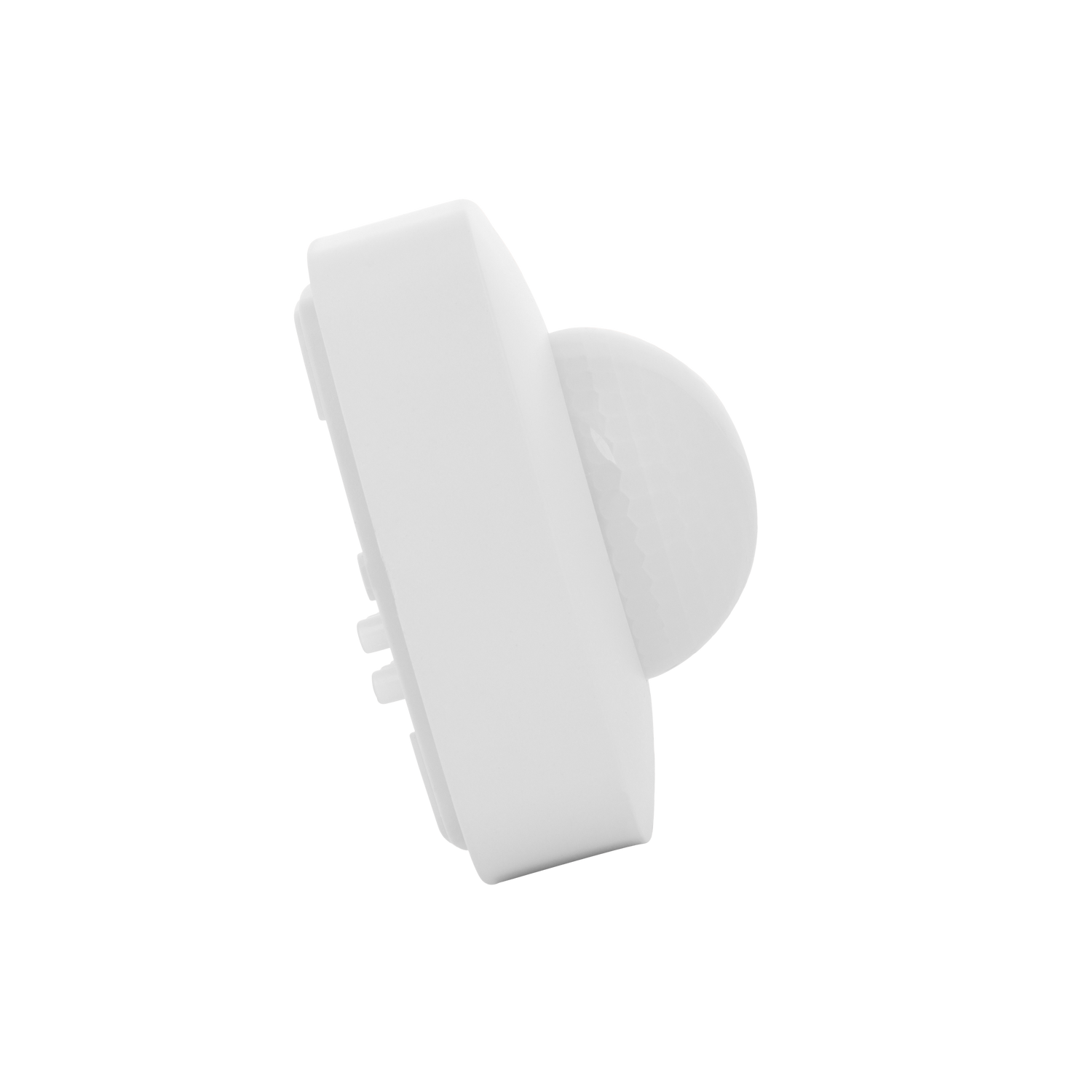

With a detection range of up to 18 meters, customizable sensitivity settings, and stand-by dimming options, it provides reliable illumination only when needed, ensuring operational efficiency. Built on the Doppler Effect principle, it enhances motion detection accuracy for Industries.
Technical Specifications
INPUT
Nominal Voltage : 240V/AC
Nominal Frequency : 50Hz
AC Voltage : 204-276 V/AC
Operational Voltage Range : 100-320 V/AC
Nominal Current : 600mA
Total Harmonic Distortion (THD) : <10%
Power factor : 0.99
Efficiency : 92%
No Load Power : <3 Watt
Power Loss : 9.2 Watt
Inrush Current : <32 A
Leakage Current : n/amA
OUTPUT
Nominal Voltage Range : 115 144V/DC
Maximum Voltage : 250V/DC
Nominal Current Range : 700mA
Current Accuracy : ±5%
Current Ripple : <5%
Nominal Power Range : 100 Watt
Galvanic Isolation : 3000V
AUX
Nominal Voltage range : 12V/DC
Maximum Voltage : 15V/DC
Nominal Current Range : 200mA
Current Accuracy : ±5%
Galvanic Isolation : 2500V
PROTECTION
Open Circut : Yes,Limitation of Output voltage <52v
Short Circut : Automatic Reversible
Phase to Phase : Withstand 440VAC for 48 hrs
Overload : Automatic reversible
Input Overvoltage : Automatic reversible
Input Undervoltage : Automatic reversible
DIMMING
Dimming Control : YES
Dimming Range : 10-100%
Dimming Technique : 0-10/PWM
Frequency : 200-1000Hz
Galvanic Isolation : 2500V
ENVIRONMENT
Ambient Temperature Range : (-20 to +70)°C
Maximum Case Temperture : 85°C
Relative Humidity : ±5 ... 90%
Surage Transient Protection : 6kV
IP Rating : 65
Expected Lifetime : 50,000hrs
SENSOR PARAMETERS
Sensor Type : Microwave / PIR
Sensor Principle : HF frequencey with Doppler Effect Principle
Frequency Microwave : 5.8 GHz
Sensor Power : <0.3mW
Sensitivity : 100%,75%,50%,25%
( Refer to Remote Control)
Hold Time : 3s/30s/90s/5min/15min/20min/30min/ (Refer to Remote Control) 5Lux/15Lux/50Lux/100Lux/300Lux/Disable (Refer to Remote Control)
Stand-by Period : 0s/5s/30s/3min/5min/15min/45min/+ ∞ % (Refer to Remote Control)
Stand-by Pimming Level : 10%/20%/30%/50% (% Refer to Remote Control)
Detection range : UP to 18 meter ⌀
